Solar Combiner Box Series
Solar combiners (solar panel combiner boxes) are engineered to combine power from several solar panels onto a common bus. They are specially designed for the types of wiring used in photovoltaic (PV) systems. The output would then be connected to a charge controller or inverter, depending on the type of system. Solar combiners also allow for a transition to larger wires between the array and the batteries or inverter to minimize transmission voltage drop, all while protecting the array.

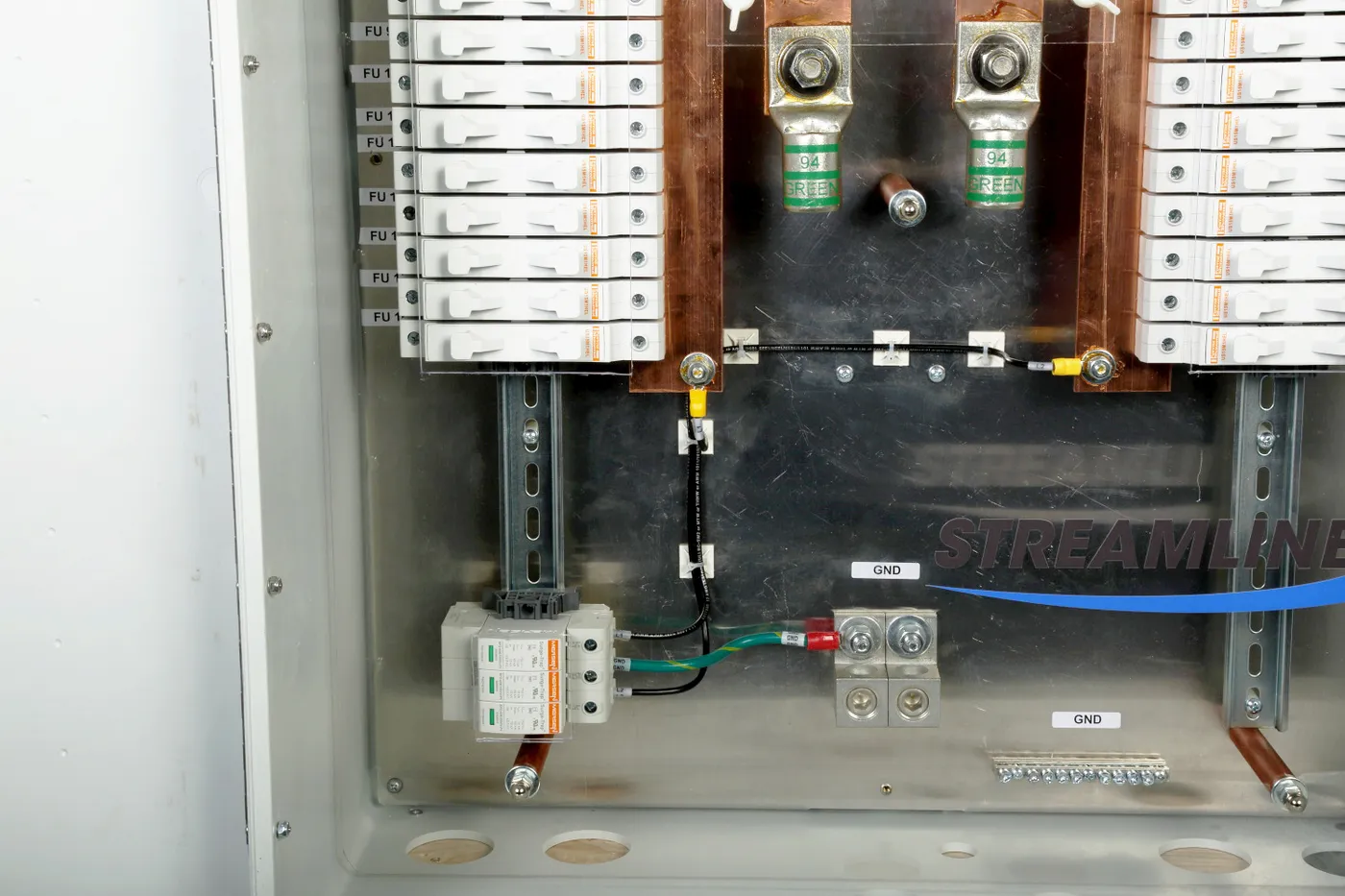

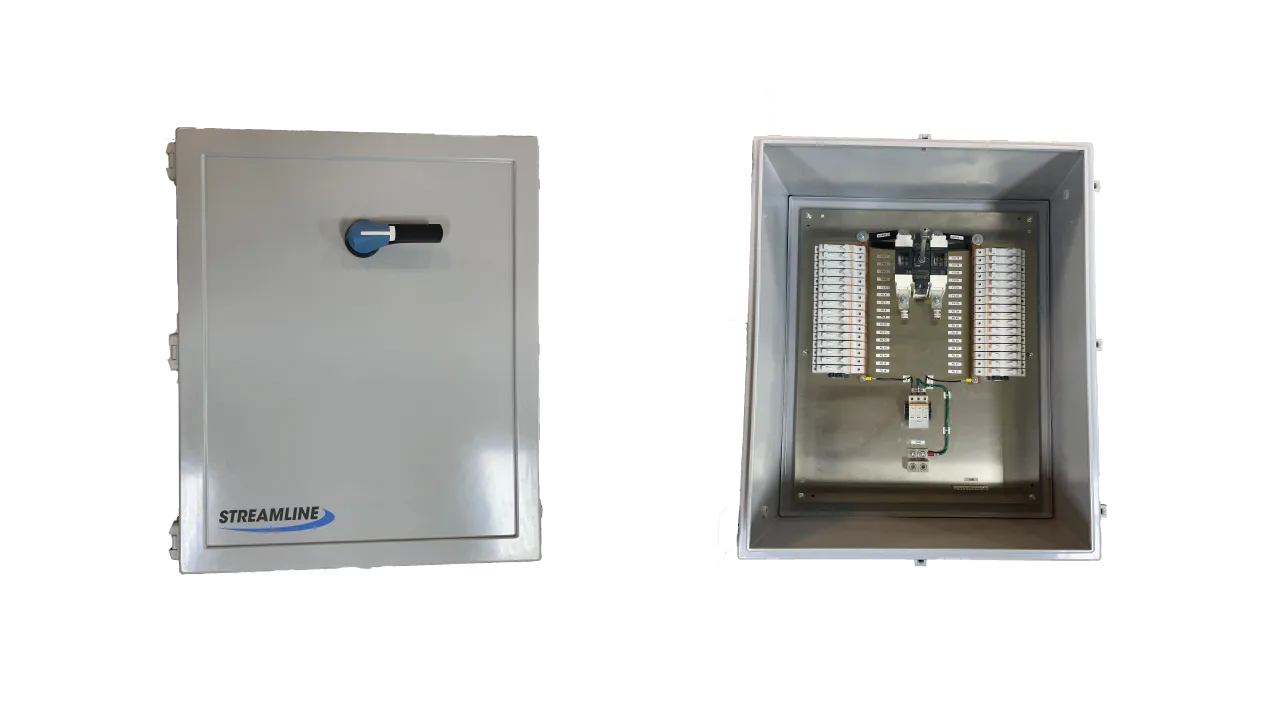

Streamline now offers a variety of premium “plug and play” solar combiner box solutions. Built in Streamline’s UL 508-A panel shop just outside of Milwaukee, Wisconsin, these systems can be trusted to perform. All combiner boxes are hand-assembled using best-in-class, name-brand components and are built to stand up under even the harshest conditions. In addition, they are highly serviceable. The polycarbonate enclosure features a full-length piano-hinged door with a non-metallic latch. They offer a variety of mounting options thanks to brass inserts on the rear wall of the enclosure and the lid. Made in the U.S.A., the enclosures are UL/cUL, NEMA, Type 6P, IP68 as well as UV and chemical resistant.
Key Features
- Built to IEC and UL standards

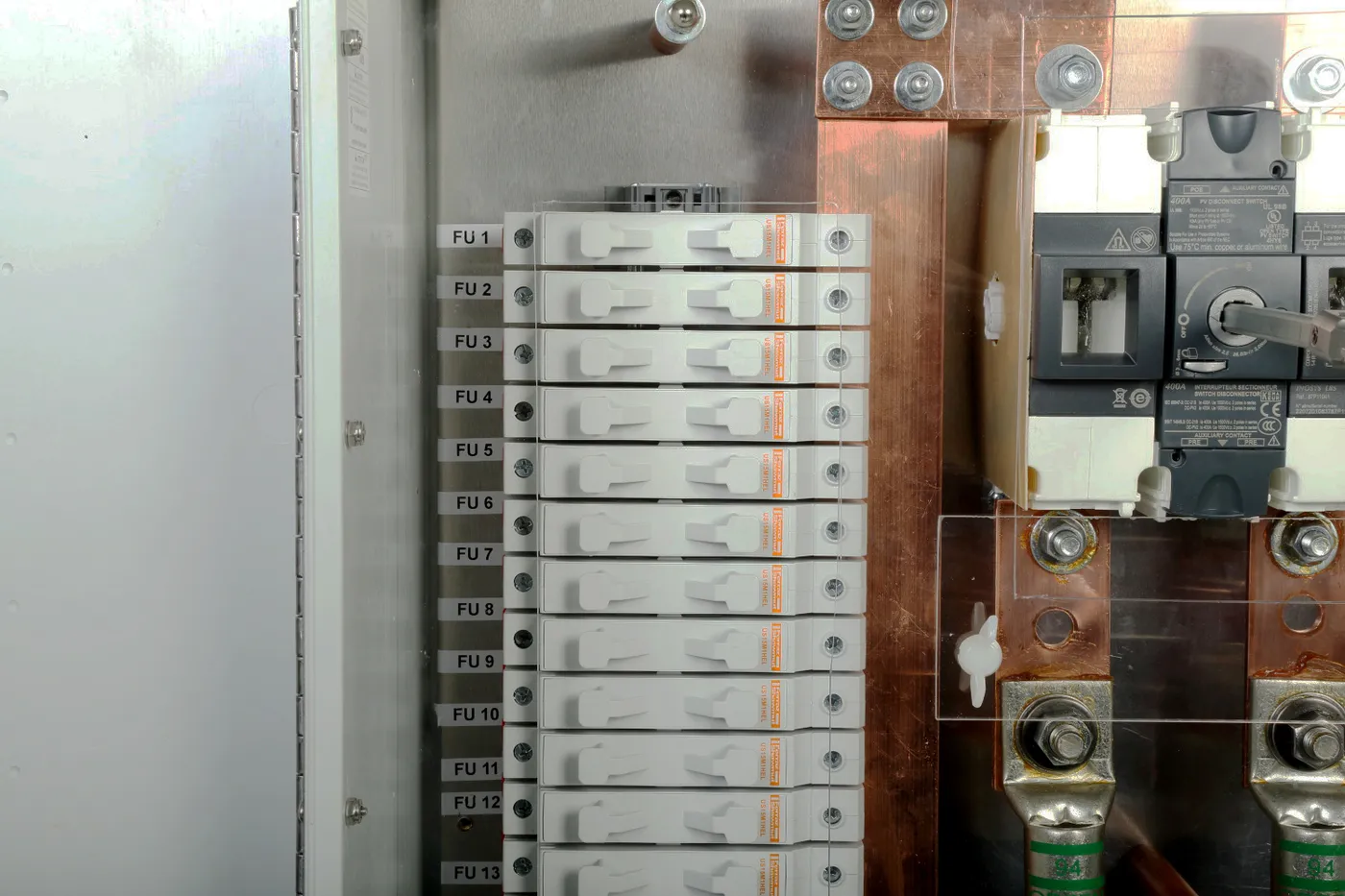

- Touch-safe fuse holder
- Surge protection
- DC disconnect switch
- NEMA 4x enclosures
- Circuit breakers mounted inside for improved safety
- IP 68
- UV resistant
- Assembled in the U.S.A.
Benefits
- Improves safety
- Saves time with prearranged configurations
- Assures smooth on-site installation
- Reduces labor and material costs
- Provides over-current and over-voltage protection
- Assembled using premium, name-brand components, resulting in enhanced durability and serviceability
- Enhances inverter protection and reliability
Streamline offers two combiner box configurations: Dual Guard™ and Solo Side™. The Dual Guard™ configuration fuses each circuit, on both the positive and negative side. Solo Side™ fuses just the positive side. Each configuration is offered in a variety of amperages, as well as a choice in the number of circuits. While a wide variety of turnkey, pre-configured combiner boxes are available, Streamline will custom design and produce a product that meets any unique customer need.
Customers can rely on Streamline’s team of experienced engineers to answer their questions or assist them in selecting the best options for their projects. Our team is live and in person to help, not just in the planning stage, but through completion of the project, and beyond.
So, whether you are expanding an existing array or assembling a new one, Streamline combiner boxes will save time and make solar panel system connections easier. Streamline products are compatible with any brand of solar panel.
